Screw cabins in the feeding section of the twin screw extruder.
Faygo Union has excellent mechanical production technology. Today we will share with you the technical questions of “Screw combination of the feeding section of the twin screw extruder”. Let’s learn about it!
The function of the feeding section of the extruder is to receive the material fed into the feeding hole of the extruder and convey the solid material to the melting section of the extruder. Solids conveying is a single operation that is performed in this area of the extruder. Most single-screw plastics processing is based on pouring: the hopper of the extruder is filled with a polymer or a mixture of polymer and additives.
Screw Composition

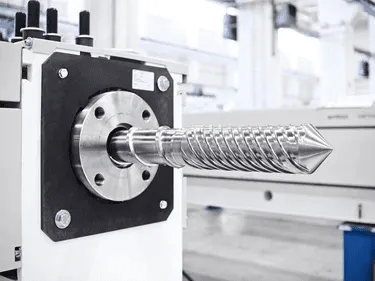

Each screw in a twin screw extruder has a screw shaft that is as long as the extruder barrel, and these two elements must be perfectly matched to allow the screw to rotate freely.
The function of the feed section of the extruder is to feed the solids into the extruder without softening or melting the material, thereby maintaining the free flow of the solids.
Conveying Element
The two main parameters that determine a conveying element are the length of the element and the axial length of the thread that makes a full revolution around the element. The longer the thread length, the wider the channel for transporting the solids. Likewise, the longer the thread length, the further the material is transported in one revolution.
Conveying elements with short thread lengths, also known as “narrow threads,” can only transport material short distances, while elements with “wide threads” will transport material long distances along the entire length of the extruder.
Material Inlet Configuration
The design of the screw in the feed zone to collect the material entering the inlet and feed it quickly into the extruder is often simplified by the use of transition elements.
Powder Inlet Design
Powders are difficult to feed, especially powders with low bulk density and very small particle size. When a light powder falls through the feed hopper, air is entrained downwards along with the powder. The powder/air mixture takes up a large volume and effectively blocks the feed hopper, resulting in reduced or no polymer feed.
In addition, the entrained air must then exit the extruder. The escaping air has only one path out of the extruder, up into the feed hopper. The escaping air will rise into the feed hopper and can cause fluidization of very light powders. The suspended powder accumulates until it enters the feed hopper and the process is repeated. Due to clogged feed ports and powder feed interruptions, trapped air can cause problems such as low and unstable feed rates.
Minimizing air entrainment and removing air from powder is critical to maintaining an economical feed rate.
