Are you fed up with pipe failures, increased maintenance expenditures, or reduced water flow? Maybe it’s the time to consider a new pipeline material. Don’t worry, PVC-O Extruders pipes offer incredible advantages in strength and long-term efficiency. Let’s explore O-pvc pipe, its process, potential advantages, durability, cost, drawbacks, and many more. So, stay connected!

1) What Is PVC-O?

“PVC-O or biaxially oriented polyvinyl chloride is a more advanced version of PVC pipe. It is produced with a more vigorous processing method than regular PVC pipe.”

Unlike PVC-U (unplasticized PVC), batch PVC-O undergoes a particular orientation method where the pipe is both lengthwise and crosswise stretched. This form of orientation helps to transform the chemically weaker versions of PVC molecules to a rigid and structured version that yields a stronger and flexible pipe.

It all begins with a standard PVC-U pipe. This pipe is then subjected to reheating and advanced stretching with extruder (plastic pipe making machine) systems. The stretch is both axial (lengthwise) and radial (across the diameter). Well, these processes of stretching lead to enhancement in tensile strength, impact resistance, and pressure handling capabilities of the material.

The classification of PVC-O pipes follows the Minimum Required Strength (MRS) criteria, which sits in the range of 315 to 500 MPa. As with most materials, the MRS rating has a direct correlation to the strength and durability of the pipe—the higher the MRS, the stronger and tougher the pipe.

Crude examples such as the MRS 500 pipes show that they are remarkably strong and at the same time, lightweight, with impressive ratings on hydraulic performance.

Lighter and stronger than traditional PE (polyethene) pipes, PVC-O pipes also boast a greater efficiency. Yes, they deliver almost double the strength with thinner walls, increasing flow capacity and enhancing ease of handling during installation. To summarise, modern pipe manufacturing owes its strength, flexibility, and long-term durability attributes to PVC-O.

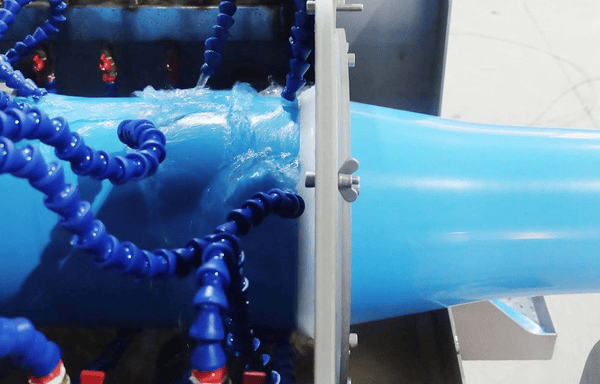

2) The PVC-O Extrusion Process

Regular PVC-U pipes can be transformed into stronger and more flexible pipes known as PVC-O pipes through a well-controlled process. The process is called biaxial orientation, where a pipe is longitudinally and outwardly stretched to enhance the material’s inner structure, increasing its toughness and durability.

Upon orientation, rigidity is achieved, making the pipe more suitable for high pressures. The one-step and two-step methods are the two main categories for making PVC-O pipes.

In the One-step method production, pipes are extruded, stretched, and cooled in a single continuous line. This technique is compact, more efficient, and economical, ideal for small to medium-sized pipes.

The two-step process differs from the one-step setup by focusing on large-diameter pipes. Initially, a PVC-U pipe is formed and cooled, then reheated and stretched to enhance molecular alignment for quality control.

Modern extruders of PVC-O are equipped with high-performance features. These include high-torque screws and precision molds designed to form the base pipes. Once the pipes are formed, they are subjected to biaxial stretching—either mechanical or air-based—at controlled temperatures. This increases the pipe’s strength around 25%, yielding 31.5 MPa.

In addition, these systems are highly automated. Nowadays, most systems have PLC temperature, speed, and pressure controllers, which help maintain consistent pipe quality throughout plastic pipe production.

Regardless of the system applied, be it compact one-step setups or larger two-step systems, these processes ensure that PVC-O pipes have remarkable strength, exceptional flexibility, and extended service life.

3) Potential Advantages of PVC-O Pipes

PVC-O pipes are different from the conventional piping materials because they offer some significant advantages. Here is what sets them apart in terms of strength and performance:

Enhanced Mechanical Strength

Compared to PVC-U pipes, PVC-O pipes offer much higher strength. The biaxial orientation process helps to increase tensile strength due to the tight molecular alignment in the pipe, enabling up to a  25% increase. It also helps the pipe maintain stronger internal pressure and makes the pipe lighter and thinner, which is suitable for water supply and irrigation networks.

Remarkable Impact and Fatigue Resistance

High impact resistance, even at cooler temperatures, is one of the key benefits of PVC-O pipes. Unlike standard pipes that face cracking or breaking upon impact, PVC-O pipes resist impact easily. Also, these pipes exhibit remarkable fatigue resistance. The ability to withstand repeated pressure cycles makes these pipes ideal for sustained usage in high-pressure systems.

Hydraulic and Flow Efficiency

These pipes utilise pressure differentials for the smooth internal surface in the piping system, along with thinner walls and high strength to enable water flow. They also maintain the outer diameter and aid in reducing friction, translating to less energy for pumping. All these factors enhance the flow rate while reducing the cost of operations over a period of time.

Durability Under Environmental Stress

PVC-O pipes withstand severe ground shifting, vibrations, and even temperature fluctuations. In addition to these, they also resist corrosion, UV radiation, and most chemicals found in soil and water. Well, these factors increase their reliability in outdoor and underground applications.

Also, these factors explain why choosing PVC-O is beneficial for building durable, economically smart, and resilient piping systems.

4) Sustainability & Lifecycle Benefits

PVC-O pipes also impacted the economy positively. Here’s a breakdown towards sustainability and economic efficiency:

+ Reduced material utilisation: Due to biaxial orientation, PVC-O pipes result in an increased strength-to-weight ratio, resulting in thinner walls. This enhances material efficiency by up to 50% raw material in production.

+ Reduced weight: Compared to PE pipes and standard PVC-U, PVC-O pipes are 60% lighter. You will observe these practically while transportation and installation due to lower weight, lower fuel and energy consumption.

+ Reduced carbon emissions: Reduced weight, along with using fewer materials, results in reduced emissions at the manufacturing and delivery stages. During piping construction, the environmental footprint is lessened.

+ Reduced emissions during production: Modern PVC-O extruders with automated Programmable Logic Controller controls and air-based cooling systems replace water tanks with PLC controlling features. It results in decreased water and energy consumption during polyethene oxide manufacturing.

+ Minimal Installation Impact: The use of heavy lifting machines is reduced with the use of lightweight pipes, which minimises ground disruption and decreases fuel emissions on-site, beneficial for eco-sensitive regions.

+ Extended Service Life: The resistance of PVC-O pipes to corrosion, fatigue, and cracking is exceptional. Their strength over time translates into fewer repairs and replacements, and significantly less waste over decades of service.

+ Reduced total lifecycle cost: Although the starting cost of the equipment is high, it requires less maintenance. Therefore, it becomes cost-effective at the end of the day. Thus, the total ownership costs reduce over time.

+ Can be Recycled: PVC-O pipes can be recycled fully after their life cycle is completed and can be used to produce new plastic products, thus following the circular economy approach.

Overall, PVC-O pipes provide the infrastructure with endurance and operational efficiency while offering eco-conscious lifecycle costs.

5) Operational & Cost Advantages

The operational and cost advantages of PVC-O pipes are things worth considering. These cost-saving benefits are due to stronger and more efficient performance and handling, thereby decreasing overall project costs.

Quicker and Simpler Installation

The structure of PVC-O pipes makes them lightweight, which eases transportation and elevating onsite. Pipes of DN 250 mm can be lifted and positioned without machinery by workers. This leads to simplified and quicker installations, reduced staffing requirements, and compressed project timelines.

Lower Transport Costs

Moreover, their lower weight translates to higher pipe quantity per trip, thus reducing fuel use and delivery expenses, especially on long hauls.

Fewer Joints and Fittings

The flexibility and longer lengths of PVC-O pipes reduce the frequency of joints and fittings. This decreases material costs while simultaneously improving system reliability by minimising leak points.

Long-Term Cost Efficiency

The PVC-O extrusion line comes at a higher initial cost, but the pipes outperform standard PVC-U pipes in durability. A longer lifespan translates into fewer repairs and lower maintenance costs over time due to resistance against cracks, corrosion, and pressure changes.

Consistent Quality with Automation

Reduced operator error and more efficient operations result from fully automated modern extrusion systems that utilise high-torque screws, PLC controls, and precision molds. Well, such systems yield consistent production results, which minimises waste, adding further efficiency.

Better Value per Performance

For municipal and private infrastructure projects, PVC-O pipes prove to be more beneficial as they possess a value-to-cost ratio greater than conventional alternatives.

In brief, we can say that the advantages of PVC-O pipes extend from production and installation to lifetime operation.

6) Considerations & Potential Downsides

Alongside the benefits of PVC-O pipes, there are a few dark sides worth thinking about, which you should know before any real implementation.

! Increased Equipment Investment: The initial investment in PVC-O extrusion equipment is a considerable concern. As opposed to standard PVC-U extruders, this PVC-O pipe making machine, equipped with high-torque screws, precision molds, and automation systems custom designs are far more costly. For smaller market players, this is a type of hurdle.

! Need for Skilled Personnel: Both the extrusion and orientation steps have technological complexities. Temperature controls, stretching ratio adjustment, and other automated systems require qualified engineers and skilled staff. Inadequate training can lead to poor outcomes in terms of pipe quality.

! Reduced Temperature Endurance: Pipes made of PVC-O are not the best suited for uses that involve high temperatures. Their accompanying mechanical strength can be compromised when subjected to heat for extended periods of time. So, in systems utilising hot water or fluids for industrial purposes, these pipes will not be a good fit.

! Sensitivity to Ultraviolet Radiation: Exposure to direct sunlight makes PVC-O, as with many other plastics, more prone to degradation. Pipes are best maintained by covering them with the appropriate UV protective materials or installing them underground.

Apart from the cited limitations, proper planning, training, and system design effectively mitigate the challenges posed, proving that PVC-O is a highly advantageous option in most scenarios.

7) Is Switching Worth It?

Absolutely! Switching to PVC-O is worth it if you are looking for long value, high performance, and decreased maintenance.

Unlike traditional PVC-U systems, the equipment’s upfront cost is distinctly higher; however, the advantages of PVC-O pipes, like greater strength, higher lifespan, lower operational costs due to lightweight construction, and ease of installation, far outweigh the investment. Moreover, they have lower energy requirements during pumping as well as significant benefits for high-pressure water and irrigation systems.

For manufacturers, modern PVC-O extruders guarantee uniform pipe quality, improved production efficiency, reduced scrap rates, and lower waste due to automated controls. Moreover, contractors and end users benefit from the reliability, safety, and sustained savings the product provides.

If the project you are undertaking requires sustainable and rugged piping, especially in rapidly growing infrastructure markets like India, switching to PVC-O is highly beneficial, as it ensures superior long-term ROI.

8) Conclusion & Recommendations

Alright! No hesitation to say that there is no stronger, more durable, or more efficient pipe than PVC-O for modern water distribution and irrigation systems. Although equipment costs may be higher, the value PVC-O pipes deliver in savings and performance over time far exceeds the initial investment.

For those looking to improve production lines or procure premium quality PVC-O products, collaborating with a reliable specialist is recommended. Faygo Union aid customers with thorough technical support and, more importantly, state-of-the-art extrusion systems. It enables the uninterrupted and economical production of pipes that fulfil the contemporary infrastructural requirements. You can contact us right now!

PVC-O (Biaxially Oriented Polyvinyl Chloride) represents the latest technological advancement in PVC piping systems. This high-performance pipe is manufactured through a specialized biaxial stretching process. Specifically, PVC-U pipes are stretched both axially and radially, causing the molecular chains within the material to align uniformly and form a network-like structure.

This unique structure endows PVC-O pipes with exceptional properties, including: Superior strength；Enhanced toughness；Outstanding impact resistance；Excellent fatigue resistance.

Notably, the pipe’s strength increases significantly with the degree of stretching. For example, when the pipe diameter expands by 60%, its strength can increase from 25 MPa (standard PVC) to 31.5 MPa.

Advantages of PVC-O pipes

PVC-O (Oriented Polyvinyl Chloride) is an advanced PVC pipe variant produced via biaxial stretching technology. As an engineered upgrade to conventional PVC-U pipes, its molecular orientation delivers superior properties. The distinguishing features of PVC-O piping systems comprise:

1. High Strength: PVC-O pipes offer superior tensile, compressive, and impact strength compared to PVC-U pipes, withstanding higher pressures.

2. High Toughness: PVC-O pipes are more durable, with better fatigue and stress cracking resistance than PVC-U pipes.

3. Corrosion Resistance: PVC-O pipes match PVC-U pipes in corrosion resistance.

4. Wear Resistance: PVC-O pipes outperform PVC-U pipes in wear resistance, making them ideal for conveying abrasive materials.

5. Welding Performance: PVC-O pipes can be welded using the same methods as PVC-U pipes.

6. Lightweight & Efficient: PVC-O pipes are lighter, easier to install, and have lower transportation costs.

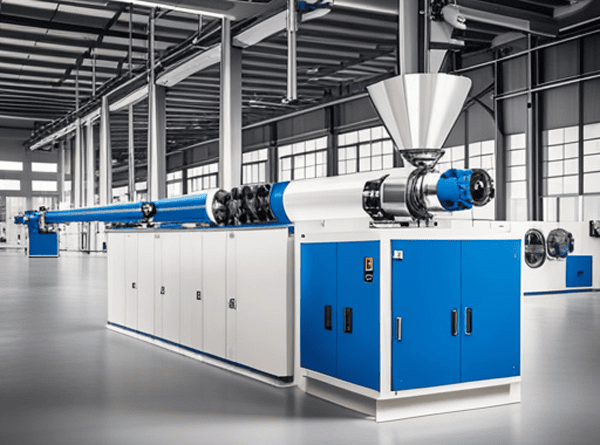

Features of PVC-O pipe extruder

PVC-O pipe extruder is a special equipment for producing biaxially oriented polyvinyl chloride (PVC-O) pipes, with the following significant features:

Efficient production：

One-Step Molding Method:This method for producing PVC-O pipes offers a small footprint, low electricity and labor costs, and minimal material waste.

Automation Control:The production line uses automation to achieve continuous, stable output, boosting efficiency.

High-quality output：

High-Torque Screw: A high-torque screw and advanced temperature control ensure stable material plasticization, uniform pipe extrusion, and precise sizing.

Precision Mold Design:The mold’s spiral diversion structure prevents surface marks on large-diameter pipes and ensures even melt distribution.

Vacuum Sizing and Cooling: A double-chamber vacuum tank provides intense cooling and vacuum functions, quickly and effectively forming and cooling the pipe.

Energy saving and environmental protection：

Low Energy Consumption Design:Efficient energy-saving design and advanced controls reduce energy use and waste in production.

Material Saving:PVC-O pipes use over 50% less material than traditional PVC-U pipes, significantly lowering material consumption.

Flexibility and adaptability：

Production of Various Specifications:PVC-O pipes can be produced in diameters from 110mm to 630mm and pressure levels from PN5 to 25.

Customized Solutions:The production line can adjust molds and parameters for customized PVC pipes of various sizes and thicknesses.

Durability and reliability：

Wear-Resistant & Corrosion-Resistant Materials:The machine is built with durable, wear-resistant, and corrosion-resistant materials to enhance its longevity.

High-Precision Traction & Cutting System:The traction system ensures stable pipe movement, while the cutting system provides precise, fixed-length cuts synchronized with the main machine.

PCV-O pipe extrusion process

The production process of PVC-O pipes is divided into one-step and two-step methods:

One-step method（in-line method）

The one-step method, also known as the in-line process, is a process in which the extruded PVC-U pipe (thick stock) is continuously subjected to radial expansion and axial stretching to achieve biaxial orientation on the pipe extrusion production line, and then cooled and shaped into a PVC-O pipe.

advantage：

High production efficiency: Continuous production is achieved, which greatly improves production efficiency.

Low cost: Reduces equipment investment and production costs, and enhances market competitiveness.

Stable quality: During the online production process, the wall thickness control of the pipe is more precise and the product quality is more stable.

shortcoming：

Complex equipment: The production process is relatively complex, requiring high-precision equipment and control systems.

Difficulty in controlling wall thickness: Once the wall thickness of the tube billet changes, it is difficult to adjust online, which may affect the orientation uniformity of the tube.

Limited large-diameter production: When producing large-diameter (≥630mm) tubes, it is difficult to start the machine, the size control is difficult, and the scrap rate is high.

Two-step method (offline method)

The two-step method, also known as the off-line process or the in batch process, is a two-step process of extruding thick stock and biaxially stretching and orienting. First, the PVC-U pipe segment (thick stock) is extruded and cooled, and then oriented by heating and pressurizing it in the mold to expand it to the required size.

advantage：

Simple operation: The production startup operation is relatively simple, and the wall thickness can be measured and controlled in real time during tube production.

Large diameter advantage: Better performance in large diameter tube production, better control of product size, and reduced scrap rate.

High quality: The transverse stretching value can be higher, the orientation effect is better, and tubes with R-R sockets can be manufactured.

shortcoming：

Low production efficiency: The production speed is slow. Taking 315mm pipe as an example, it takes about 1 hour to produce a 6-meter pipe.

High cost: The equipment investment is high. In the production process, the invalid sections (about 5%) need to be cut off at both ends of each pipe, which increases material waste.

Difficulty in continuous production: Continuous production cannot be achieved, and the production efficiency and automation level are relatively low.

The one-step method suits small-to-medium pipe production, offering high efficiency and low cost but requiring precise equipment and limiting large-diameter output； The two-step method is better for large pipes, ensuring higher quality but at the cost of lower efficiency, higher costs, and discontinuous production.

According to specific production needs and pipe specifications, enterprises can choose the appropriate production process.

Application of PVC-O pipe

PVC-O pipes are widely used in the following fields:

Water supply pipes: used in urban water supply systems, rural tap water projects, etc.

Drainage pipes: used in urban drainage systems, rainwater drainage systems, etc.

Industrial pipes: used for transporting chemical liquids, industrial wastewater treatment, etc.

Agricultural irrigation: used in farmland irrigation systems.

Construction: used in water supply and drainage systems of buildings.

PVC-O pipe extruders are ideal for producing high-performance PVC-O pipes due to their high efficiency, energy saving and high quality.

PCV-O pipe extruder VS PVC-U pipe extruder

1、Material properties and applications

PVC-U Extruder：

Material properties: PVC-U (unplasticized polyvinyl chloride) is a hard plastic with good chemical resistance and mechanical strength.

Application areas: Mainly used in the production of standard pipes, drainage pipes, cable sheaths, etc.

PVC-O Extruder：

Material properties: PVC-O (biaxially oriented polyvinyl chloride) has higher impact strength and fatigue resistance through a biaxial stretching process. At room temperature, the impact strength of PVC-O is five times that of PVC-U.

Application areas: Suitable for applications that require higher strength and durability, such as water supply pipes, industrial pipes, and agricultural irrigation systems.

2、Extrusion process

PVC-U Extruder：

Process characteristics: Single screw extruder is usually used, which has simple structure, low cost and is suitable for large-scale production.

Production efficiency: It is suitable for producing thermoplastic materials with uniform performance and has high production efficiency.

PVC-O Extruder：

Process characteristics: usually use a twin-screw extruder, which can better mix and shear materials and is suitable for producing high-strength and high-performance PVC-O pipes.

Production efficiency: Although the equipment cost is higher, it can handle more complex material formulas, with higher production efficiency and product quality.

3、Equipment Features

PVC-U Extruder：

Equipment advantages: simple equipment, low maintenance cost, suitable for small and medium-scale production.

Equipment disadvantages: limited processing capacity for highly filled materials or complex formulations.

PVC-O Extruder：

Equipment advantages: It has better mixing and shearing capabilities, can handle a variety of materials, and is suitable for producing high-performance pipes.

Equipment disadvantages: The equipment is complex, the maintenance cost is high, and more professional operation and maintenance knowledge is required.

4、Production cost and economic efficiency

PVC-U Extruder：

Cost advantage: The initial investment and maintenance costs are low, suitable for enterprises with limited budgets.

PVC-O Extruder：

Cost advantage: Although the initial investment is higher, in the long run, it has better economic benefits due to its high production efficiency and high-quality output.

Summarize

Choosing a PVC-U extruder or a PVC-O extruder depends on the specific application requirements, production scale and budget. If you need to produce high-strength, high-performance pipes, a PVC-O extruder is a better choice; if you need low-cost, high-efficiency production, a PVC-U extruder may be more suitable.
