A plastic sheet extruder machine is vital for manufacturing plastic sheets by melting and forming raw materials. This article covers its key components, types, and essential features to help you choose the right extruder machine for your needs.
Key Takeaways
- Key components of a plastic sheet extruder machine include the extruder, die head, cooling rolls, and control system, each essential for high-quality production.
- Types of extruders—single screw and twin screw—offer different advantages, with single screws favored for simplicity and reliability, while twin screws excel in material mixing.
- Choosing the right materials, such as PET, PP, and PC, is vital for the quality and performance of extruded plastic sheets, impacting their applications across industries.

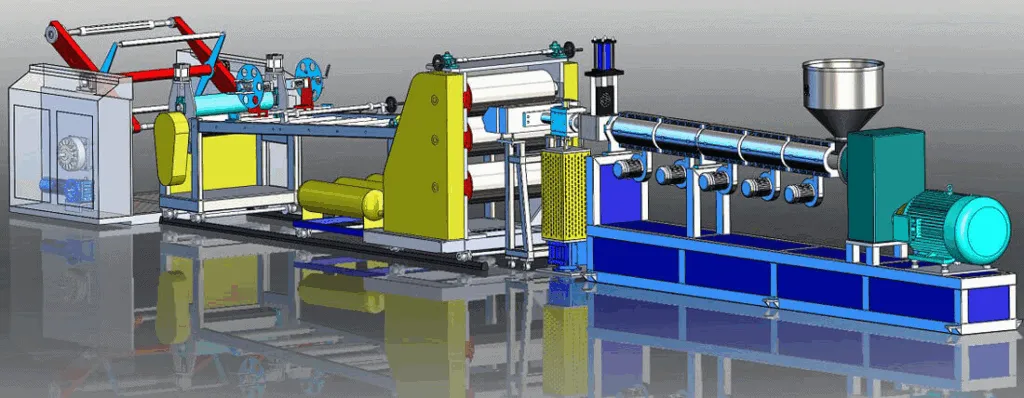

Key Components of a Plastic Sheet Extruder Machine
Grasping the key components of a plastic sheet extruder machine is essential for those in the manufacturing process. The main parts include:
- The extruder
- Die head
- Cooling rolls
- The control system Each integral to producing high-quality plastic sheets.
These individual components work in harmony to melt, shape, and solidify plastic materials, ensuring consistency and precision in the final product.
The Extruder
The extruder is the core of the plastic sheet extrusion process, tasked with:
- Melting and homogenizing plastic materials.
- Utilizing rotating screws to blend the plastic uniformly, ensuring a consistent flow of molten plastic.
- Mixing and transporting the material.
- Generating the needed heat for melting.
Whether using single or twin screws, the efficiency and reliability of several extruders are critical for producing high-quality plastic sheets.

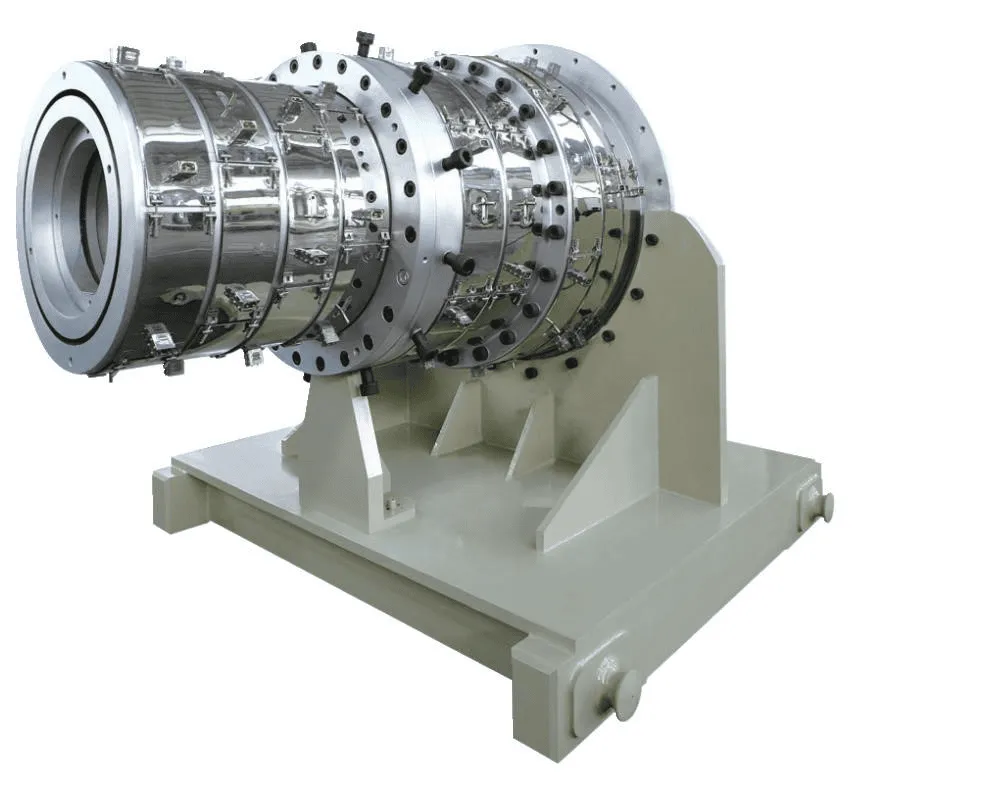

Die Head
The die head is where the magic happens, shaping the molten plastic into sheets with precise thickness. In sheet extrusion, T-shaped, coat-hanger dies, and flat dies are commonly used to achieve the necessary sheet profiles. However, improper die design can lead to clogging issues, impacting the final product’s quality.
Therefore, meticulous attention to die head design is crucial for optimal performance.
Cooling Rolls
Cooling rolls are critical in the plastic sheet extrusion process, playing a vital role in solidifying the extruded material. They maintain a uniform temperature, ensuring that the plastic sheets cool evenly and retain their intended shape and properties.
Effective temperature control via cooling rolls is vital for producing high-quality plastic sheets.
Control System
The control system is the brain of the plastic sheet extruder machine, managing critical parameters such as temperature and speed. Precise management of these parameters ensures the consistent quality of the extruded sheets.
Maintaining optimal conditions throughout the extrusion process, the control system is pivotal in achieving high production efficiency and product quality.
Types of Plastic Sheet Extruder Machines
Plastic sheet extruder machines come in various types, with single screw and twin screw extruders being the most common. Each type has its unique advantages and is suited for different applications. Recognizing these differences helps in selecting the right machine for your specific needs, be it simplicity and ease of operation or advanced mixing capabilities.
Single Screw Extrusion Machines
Single screw extrusion machines are renowned for their simplicity and reliability. They are widely used in plastic sheet production due to their straightforward one screw operating and maintenance.
Industries ranging from food packaging to automotive benefit from the versatility of these machines, making them a staple in many manufacturing processes. Their design allows for efficient processing of various plastic materials, ensuring consistent product quality.
Twin Screw Extrusion Machines
Twin screw extrusion machines offer superior mixing capabilities, making them ideal for processing complex materials. They come in two sub-types: co-rotating and counter-rotating, each with specific advantages.
While co-rotating extruders provide excellent ingredient uniformity, counter-rotating extruders can handle higher pressure build-up, enhancing operational efficiency. These machines are essential for applications requiring precise material blending and high-quality outputs through coextrusion.
Materials Used in Plastic Sheet Extrusion
Choosing the right materials for plastic sheet extrusion is critical for achieving the desired properties in the final product. Common materials include polyethylene (PE), polypropylene (PP), and polycarbonate (PC), each offering unique benefits.
The choice of material impacts not only the extrusion process but also the performance and durability of the plastic sheets.
Polyethylene Terephthalate (PET)

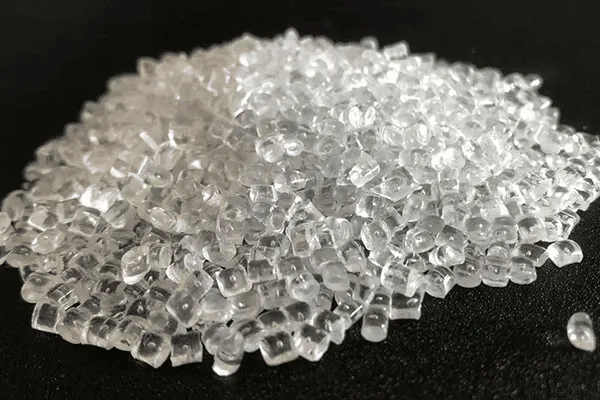

Polyethylene Terephthalate (PET) is a thermoplastic polymer widely used in plastic sheet production due to its excellent strength, thermal stability, and chemical resistance. Its versatility makes it a preferred choice for various applications, including packaging, automotive components, and medical devices.
PET’s performance in extrusion processes highlights its essential role in manufacturing high-quality plastic sheets.
Polypropylene (PP)
Polypropylene (PP) is a highly versatile material used in numerous industrial applications. Its strength increases with higher ethylene content in its copolymer forms, making it ideal for automotive and industrial sectors.
PP’s robustness and resistance to chemicals and moisture make it a valuable material in plastic sheet extrusion.
Polycarbonate (PC)
Polycarbonate (PC) is renowned for its impact resistance, making it suitable for protective barriers and high-stress applications. Industries benefit from PC’s ability to produce high-quality sheets that can withstand significant physical stress, ensuring durability and reliability in various industrial applications.
The Plastic Sheet Extrusion Process
The plastic sheet extrusion process is a meticulous sequence of steps that transform raw materials into high-quality processed plastic sheets, with further processing involved. It begins with feeding raw materials into the extruder, followed by melting and mixing, and culminates in shaping and cooling the molten plastic using plastic sheet extrusion lines.
Each step is critical for ensuring the consistency and quality of the final product.
Feeding Raw Materials
The journey of plastic sheet extrusion begins with the introduction of raw materials. These materials:

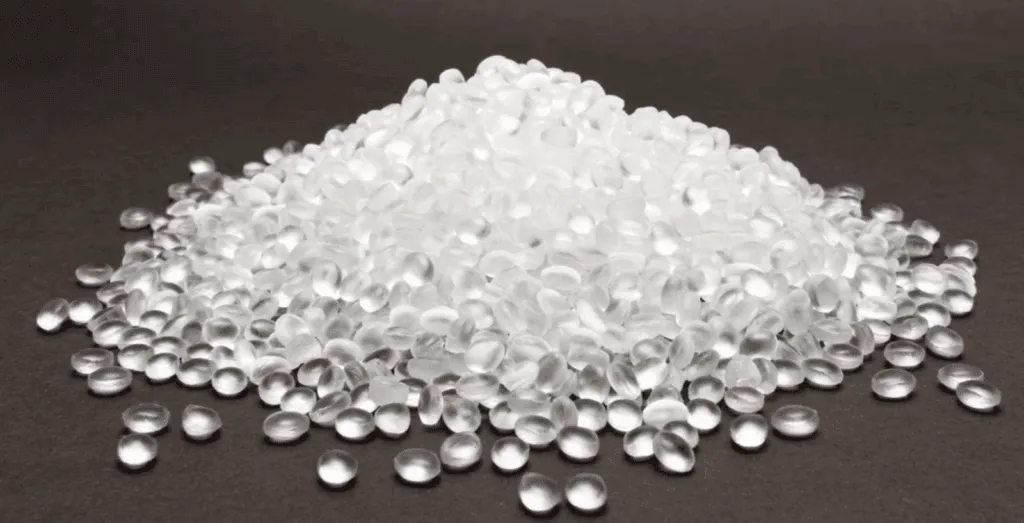

- They are usually in pellet or plastic granule form
- Are fed into the extruder
- They are introduced through a hopper
- They are transported to the feed zone, where they begin to melt and mix.
Proper feeding is essential for maintaining a consistent flow and quality of the final product.
Melting and Mixing
Once in the extruder, the raw materials are gradually melted and homogenized using a rotating screw in a heated cylinder. The mechanical energy generated by the screws helps achieve the desired consistency and flow characteristics of the molten plastic.
Maintaining optimal thermal properties and temperature control is critical for ensuring a smooth and efficient extrusion process.
Shaping and Cooling
The molten plastic is then forced through a die, shaping it into continuous sheets. Cooling rolls rapidly cooled the shaped material, solidifying it into the desired form through injection molding.
Effective temperature control during this phase is essential for preventing warping and ensuring uniform thickness and texture in the final product.
Optimizing Plastic Sheet Extrusion
Optimizing the plastic sheet extrusion process is key to enhancing production efficiency and product quality. Manufacturers can employ various strategies, including:
- Equipment adjustments
- Process parameter tuning
- Material selection improvements. These optimizations ensure consistent product quality and reduce operational costs.
Equipment Adjustments
Regular maintenance and adjustments of plastic sheet extruder machines are key to optimal performance. Scheduled checks help identify potential issues before they escalate, ensuring longevity and consistent operation.
Adjusting machine settings, such as screw configurations and temperature controls, can significantly improve throughput and product quality.
Process Parameter Tuning
Fine-tuning process parameters like temperature and screw speed is crucial for optimizing the efficiency and quality of plastic sheet extrusion. Advanced technologies and detailed analyses can identify inefficiencies and opportunities for enhancement, leading to better product consistency and overall process efficiency.
Material Selection Improvements
Selecting the right plastic materials is fundamental to improving the extrusion process and the final product’s performance. Proper plastic material selection minimizes issues related to inconsistent raw materials, ensuring high-quality outputs.
Commonly used materials like PET, PP, and PC offer specific properties that enhance the extrusion process and meet various application needs.
Common Challenges in Plastic Sheet Extrusion
Plastic sheet extrusion is not without its challenges. Issues such as temperature control, screw speed, air pressure adjustments, and pressure adjustments can affect the quality and consistency of the final product.
Addressing these challenges through effective management and optimization strategies is key to producing high-quality plastic sheets.
Material Inconsistencies
Inconsistent raw materials can lead to significant product defects, including surface imperfections and improper thickness. Implementing strict quality control measures and sourcing materials from reputable suppliers can help manage these inconsistencies.
Advanced blending techniques also help ensure consistent product quality.
Die Clogging
Die clogging is a common issue that can disrupt the flow during the extrusion process, leading to uneven thickness or defects in the final product. Using appropriate filters and maintaining the die head can help mitigate this problem, ensuring a smooth and consistent extrusion process.
Cooling Issues
Effective cooling is crucial for preventing defects like warping and maintaining the quality of extruded plastic sheets. Proper temperature control and cooling management ensure uniform thickness and texture, resulting in high-quality final products.
Manufacturers must prioritize cooling systems to achieve consistent and reliable outputs.
Applications of Plastic Sheets
Plastic sheets are integral to a wide range of industries, from automotive to food packaging and medical devices. Their versatility and adaptability make them essential in manufacturing processes, providing solutions that meet specific industry requirements.
The following subsections explore some of the key applications of plastic sheets.
Automotive Industry
In the automotive industry, plastic sheets are widely used to manufacture various automotive parts and components. Extruded sheets are specifically utilized for dashboards, protective panels, and other interior elements.
Polypropylene, in particular, is highly valued for its strength and durability, making it an ideal choice for vehicle interiors and other high-stress applications.
Food Packaging
Plastic sheets, especially those made from PET, play a crucial role in food packaging, providing durable and safe solutions for storing and transporting food products. These plastic sheets can be produced from both virgin and recycled materials, enhancing their sustainability and reducing environmental impact.
Their clarity and strength make them ideal for forming trays, lids, and flexible packaging.
Medical Devices
The use of plastic sheets in medical devices is essential for ensuring product sterility and safety. These sheets are designed to withstand chemical exposure and are easy to clean, making them suitable for a variety of medical applications.
Their role in the production of medical devices highlights their importance in maintaining high standards of hygiene and effectiveness.
Factors to Consider When Choosing a Plastic Sheet Extruder Machine
Selecting the right plastic sheet extruder machine is crucial for optimizing production efficiency and product quality. Key factors to consider include the manufacturer’s reputation, customization options, and energy consumption.
These considerations ensure that the chosen machine meets specific production requirements and supports sustainable manufacturing practices.
Manufacturer Reputation
Choosing a reputable manufacturer is critical for ensuring the reliability and performance of plastic extrusion machines. Evaluating customer feedback and case studies can provide insights into a manufacturer’s service quality and reliability.
Well-regarded brands like Davis-Standard are known for their high-quality equipment and exceptional support, making them a preferred choice in the industry.
Customization Options
Customization options are essential for meeting specific production requirements in plastic sheet extrusion. Features such as adjustable sheet thickness, texture, and color allow manufacturers to produce sheets tailored to their needs.
Companies like Bixby International and Reifenhäuser Group offer customized sheet production lines, ensuring versatility and adaptability in various applications.
Energy Consumption
Energy efficiency is a critical factor in plastic sheet extrusion, influencing operational costs and environmental sustainability. Energy-efficient machines reduce the carbon footprint and promote greener production practices.
By choosing energy-efficient equipment, manufacturers can lower operational costs and contribute to sustainable manufacturing.
Summary
Plastic sheet extruder machines are indispensable in the manufacturing industry, offering versatility and efficiency across various applications. Understanding the key components, types, and materials used in these machines is essential for optimizing production processes and ensuring high-quality outputs. From feeding raw materials to shaping and cooling, each step in the extrusion process plays a crucial role in determining the final product’s quality and consistency.
Addressing common challenges and optimizing the extrusion process through equipment adjustments, process parameter tuning, and material selection improvements can significantly enhance production efficiency. When choosing a plastic sheet extruder machine, factors such as manufacturer reputation, customization options, and energy consumption should be carefully considered to meet specific production needs and support sustainable practices. By staying informed and making strategic decisions, manufacturers can achieve consistent product quality and operational excellence.
