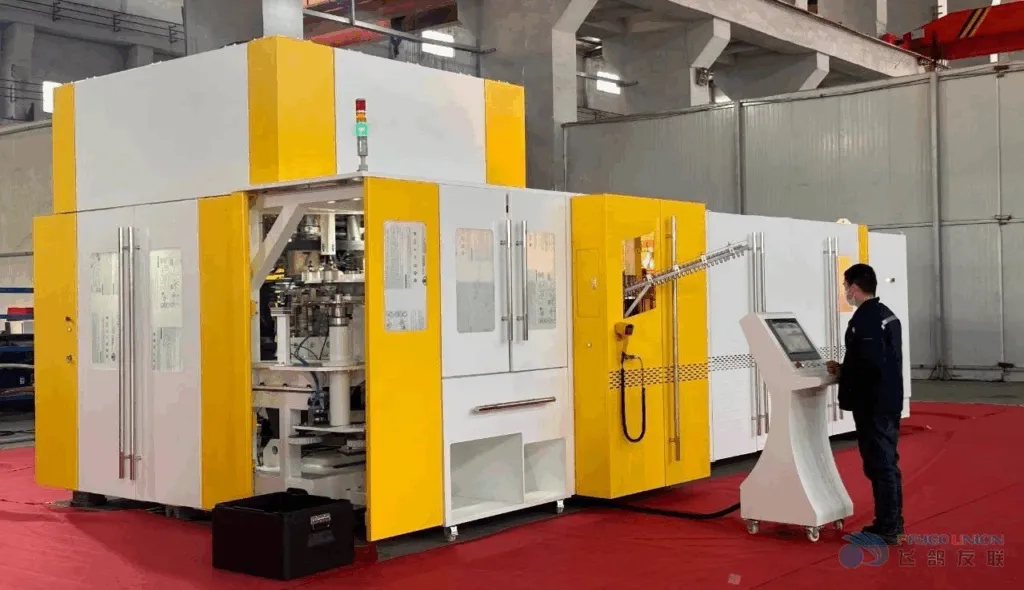

Faygo Union Rotary Blow-Fill-Cap Machine: Trial Run
A Lively Crowd Gathered to Watch the Machine being Tested!
Chairman Selection!
Faygo Union Rotary Blow-Fill-Cap Machine: Advantages

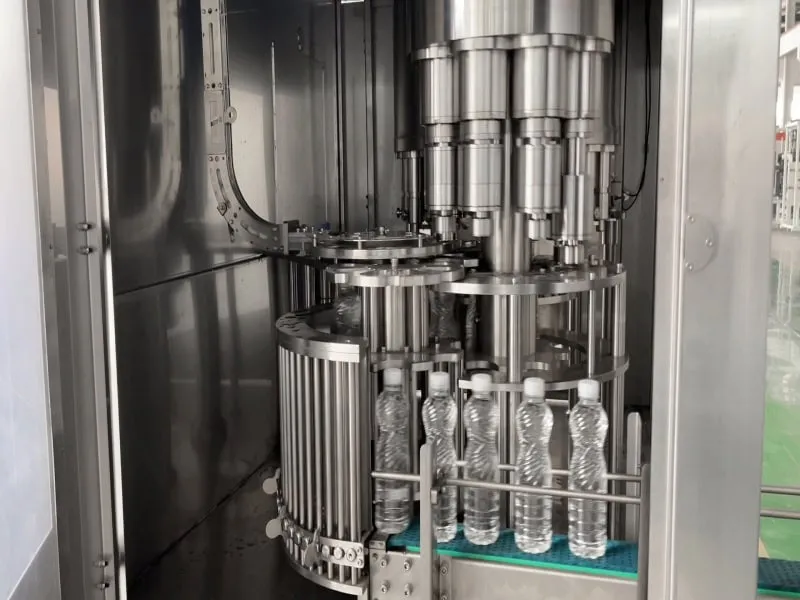

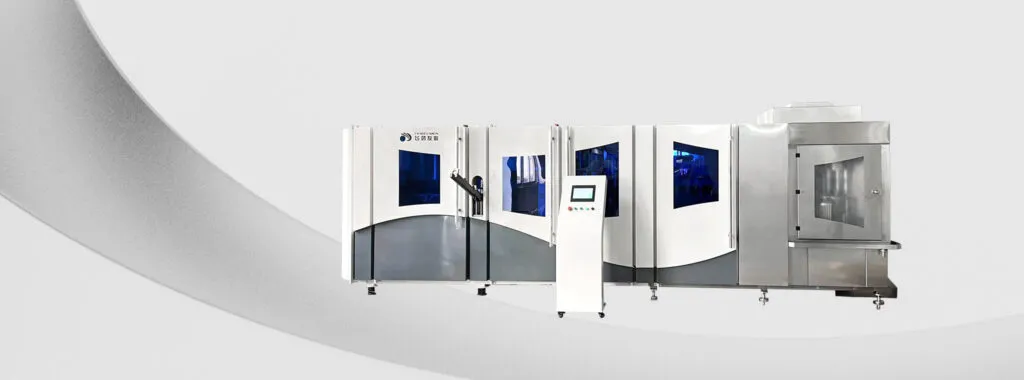

Jiangsu Faygo Union Machinery Co., Ltd. has developed a rotary blow-fill-cap machine that integrates bottle blowing, filling, and capping functions. Designed specifically for PET bottle production lines, it is suitable for large-scale production of liquid products such as beverages and water. The equipment adopts advanced technology and offers advantages such as high speed, energy efficiency, stability, and intelligence.

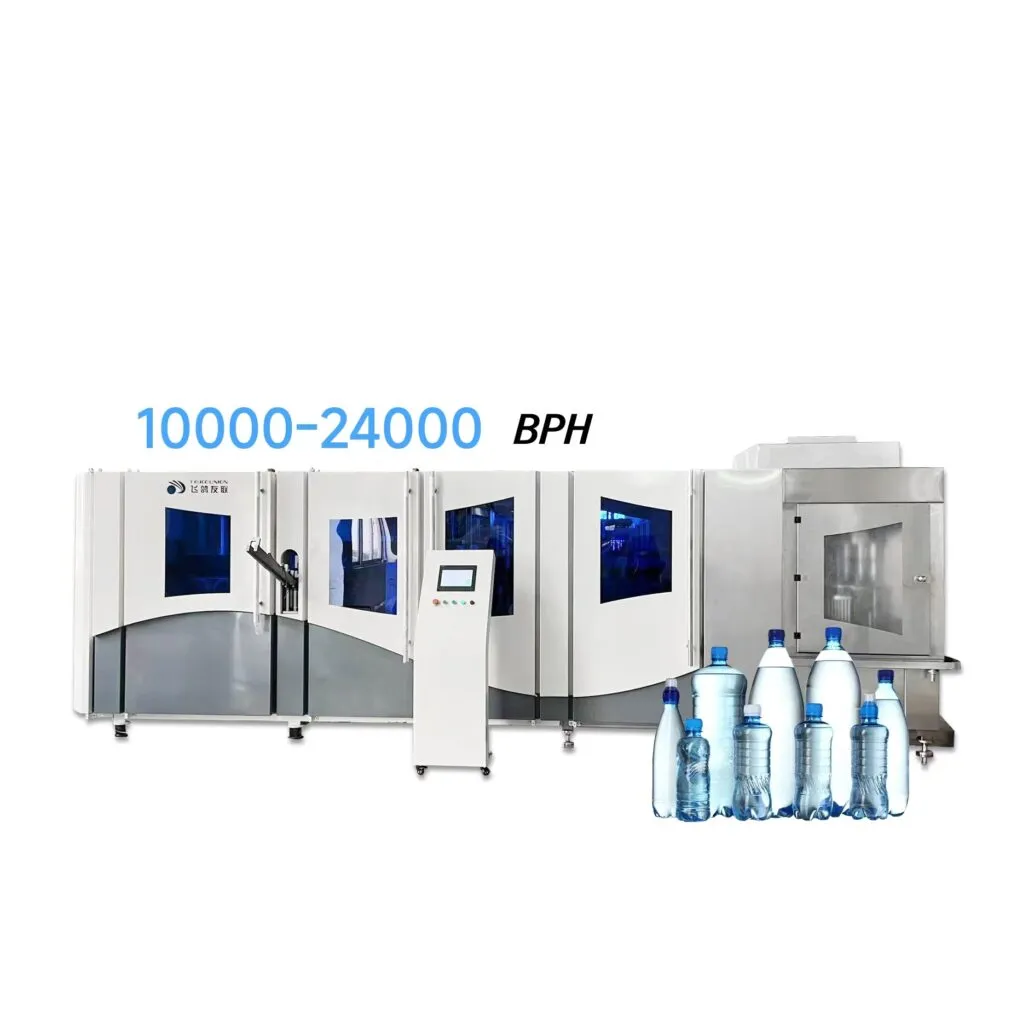

1.High output: Single-cavity production capacity is no less than 2,400 BPH, and 10-cavity rotary blow molding machine production capacity can reach 24,000 BPH (500 ml bottles). Servo synchronous control technology ensures seamless connection between units, greatly improving the efficiency of the entire line and saving floor space.
2. Energy saving: The use of a 6-core, 6-process high-pressure control valve and an innovative gas circuit recovery system that uses waste gas pressure for pre-blowing reduces gas consumption by 30%-40%. The infrared heating furnace is paired with ceramic plate energy storage technology, reducing energy consumption by 10%-20%. The water cooling system optimizes heat management for further energy savings.
3. High precision and stability: Servo controllers are used to ensure the positioning and displacement accuracy of the stretching rod. Imported magnesium-aluminum molds are precision-machined on multiple axes, resulting in lightweight and high-precision components. Reverse buffer locking technology reduces impact noise by 40% and ensures smoother operation. Siemens PLC and Danfoss variable frequency drives achieve millisecond-level response, ensuring process stability. The controllability of servo control enables synchronized coordination between the movement of the stretching rod and high-pressure blowing during bottle blowing, allowing for the establishment of blowing molding parameters for bottles of different weights and materials, resulting in superior bottle formation.
4. Intelligent and flexible: The 10-inch touchscreen human-machine interface supports multi-language operation and real-time monitoring of more than 20 sensor parameters. The modular design supports quick bottle type switching (mold replacement can be completed in half an hour) and is compatible with various specifications ranging from 0.25 to 2 liters.
5. Hygiene: All stainless steel contact parts (SUS304), ion air dust removal, and CIP cleaning system meet hygiene requirements; robotic arm picks up and delivers bottles without contact, avoiding secondary contamination.
In addition to rotary blow-fill-cap machines, Faygo Union also offers linear blow-fill-cap machines with a production capacity ranging from 8,000 to 16,000 BPH.
The linear blow-fill-seal machine has the notable feature of a small footprint, saving space compared to traditional air conveyor connections or bottle sorting machine connections, and reducing secondary contamination. It also adopts a modular design for easy assembly and maintenance. In addition, the linear blow-fill-seal machine offers numerous advantages, including ease of operation, energy efficiency, and a more rational structure.
Faygo Union Release and Blessing Ceremony
Today is the 19th day of the second lunar month, the birthday of Guanyin Bodhisattva. Faygo Union organized a group of people to participate in a release activity, returning fish to their natural habitat and praying for peace and good fortune.
Faygo Union& Suzhou Yuda have been focusing on plastic extrusion, blow molding and filling, robot AGV and AMR carts, as well as automation renovation projects for many years. Let’s work together to make the world a better place.
Jiangsu Faygo Union Machinery Co., Ltd.
COMPANY INTRODUXTION
Jiangsu Faygo Union Machinery Co., Ltd. is a high-tech enterprise specializing in the research, manufacturing, production and sales of plastic machinery equipment, and it is also a private scientific and technological enterprise in Jiangsu Province. Suzhou Yuda Robot Factory provides overall solutions for robots, automated production transformation, intelligent factories, new energy, energy conservation and environmental protection. The company has 13 national invention patents and 8 utility model patents.
